Milford-on-Sea Beach Huts ready for occupation

The Milford-on-Sea Beach Huts and Public Realm Improvements at have now been completed.

After the original terrace of beach huts were severely damaged in a huge storm on Valentine’s Day 2014, New Forest District Council agreed to replace the 119 beach huts and, following our involvement, took the decision to use the opportunity to improve Milford’s seafront for residents and visitors.

The brief was to design identical replacement huts that could withstand a 1:200 year storm event. Critical constraints were; there could be no increase in the height or change to the location of the huts. Through engagement with the public and a public exhibition, attended by over 600 local residents, we were able to establish support for significant enhancements to the project. The most significant was moving the promenade onto the roof. This has opened up a whole new waterfront experience, visitors now able to enjoy uninterrupted views of the coastline and the Needles. This increase in the area of upper prom then allowed us to move the beach huts further back, away from the sea, reducing their exposure, widening the lower prom and increasing the space available for beach hut owners.

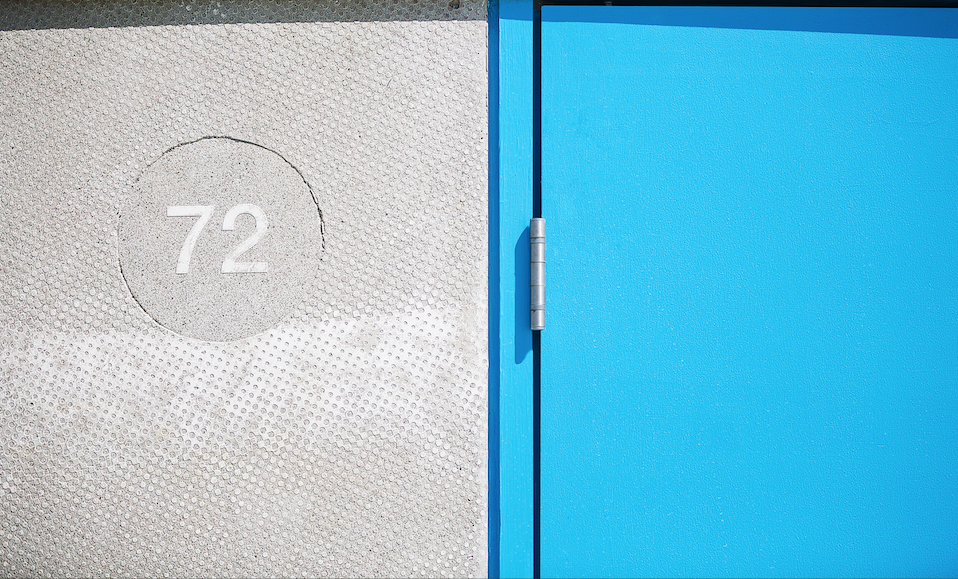

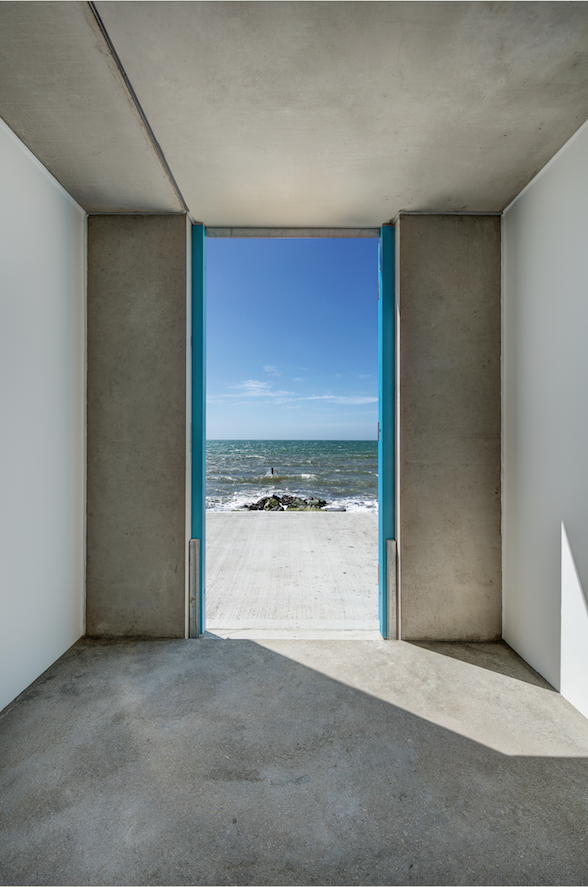

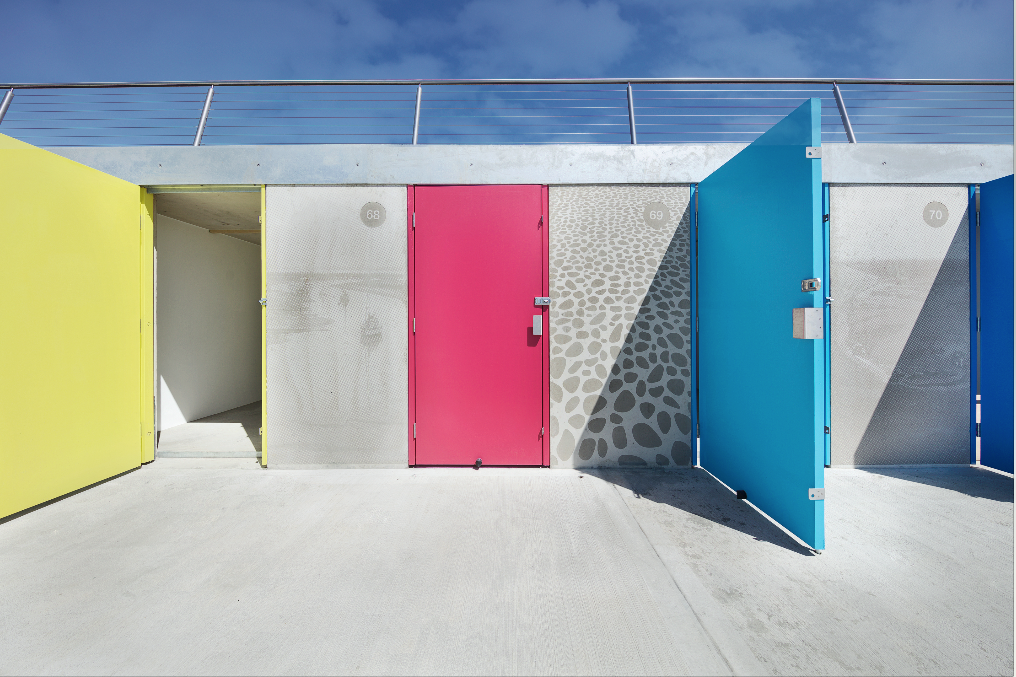

The new huts are very robust, constructed of concrete c-sections with precast graphic concrete front panels and marine ply doors. The beach hut owners were presented with a carefully selected pallet of colours to choose from for their new doors. Our objective was to achieve vibrant highlights of yellow and pink against a predominantly blue back drop. The challenge was how to achieve this whilst having no control over peoples individual colour choices. To achieve this we banked on blue being peoples favourite choice. To ensure this would become the dominant colour we provided a choice of vibrant pint, a zesty yellow and a subtly distinctive lime green as well as two shades of blue. The result was a randomly selected colour scheme that achieved exactly what we were hoping.

In addition to these primary moves, the scheme also benefits from a number of more subtle marginal gains. By narrowing the party walls we have been able to shorten the overall length so that one whole terrace of huts could be removed from the most exposed section of the waterfront. This has the added benefit of opening up new views, and along a greater extent of the promenade.

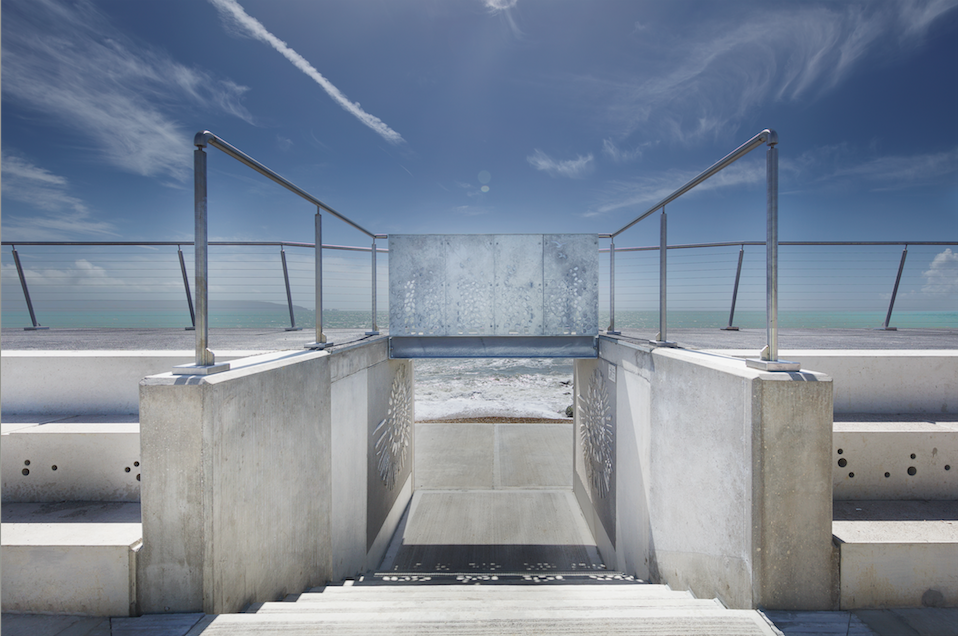

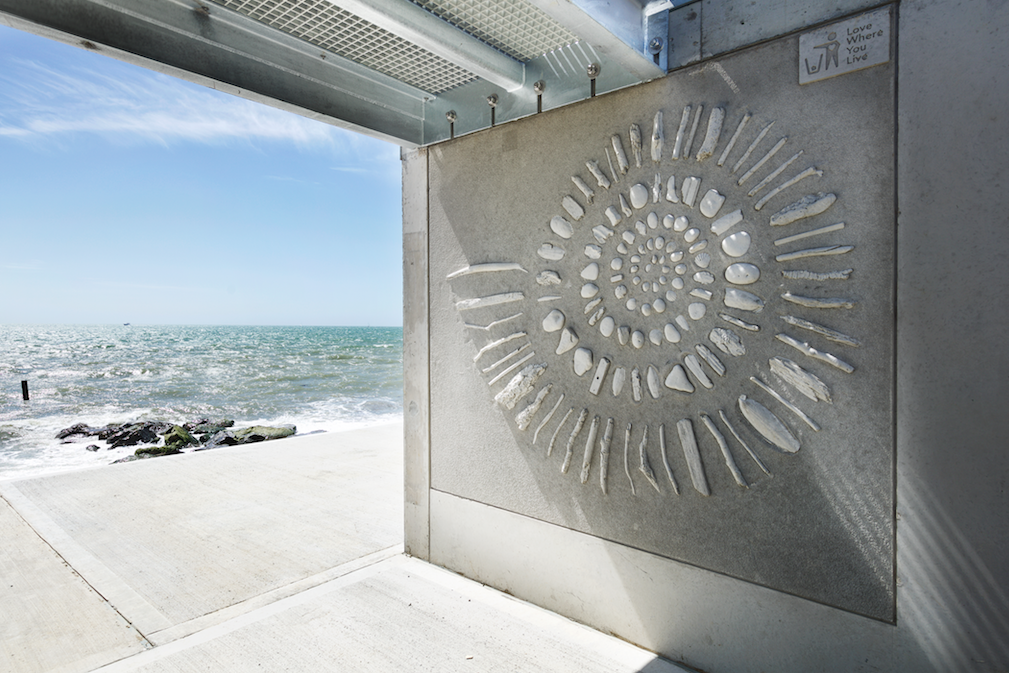

A walkway with handrails has been installed along the tops of the beach huts, with connecting bridges between sections of terraces enabling pedestrians to enjoy the spectacular Solent views from an elevated position. Steps up to the rooftop walkway from the rear upper promenade double as extra seating for visitors, interspersed with benches.A galvanised steel ramp now curves around the World War II pillbox at the western end of the site and concrete ramps have been installed to give wheelchair users and pushchairs access to both promenades. Construction techniques more common to civil engineering projects were employed to create structures designed to withstand the conditions. Pre-cast concrete sections form the body of the huts. The design is softened by concrete front panels featuring a range of coastal-inspired designs from pebbles to Keyhaven River and the Needles. A new sea wall has also been incorporated into the rear of the huts to improve the coastal defences.

The project is an exercise in concrete design and the use of a bespoke Reckli formwork liner allowed us to create a bespoke piece of public artwork on the end of each terrace, adjacent to the improved access steps.

The project was managed by a project team made up of NFDC councillors and officers along with representatives of Milford Parish Council and the New Forest Beach Hut Owners' Association.Engineering consultancy Ramboll UK Ltd led the design development of the scheme for NFDC, appointing Totton-based Snug Architects to develop the vision. Importantly, early design ideas were shared with the public and their views taken into consideration when the project team selected the preferred design. Damian Westlake of Ramboll UK Ltd, who led the design team said “We were delighted to have the opportunity to design and supervise this interesting and challenging scheme. The design started with an aspiration to enhance the waterfront, provide robust beach huts and meet the needs of beach hut users, local people and visitors. Through close working with NFDC, project stakeholders and latterly with Raymond Brown Construction Ltd, we believe that the new beach huts and promenade areas have been designed and constructed in a way that fully realises this aspiration.” Following design development and public feedback the scope of the scheme expanded to include improving the public areas around the beach huts, which resulted in an increase in the original budget which had been based on like for like replacement. A budget of £1.26million was allocated in 2014 for the like for like replacement of 119 beach huts at Milford-on-Sea. The scheme expanded to include improvements to the public areas around the huts, resulting in a total investment in the seafront and 119 replacement beach huts of £2.36million. This includes £430,000 contributed to the rebuild costs by the owners of the 119 beach huts. Raymond Brown Construction of Ringwood, began construction in September 2016 and completed the build on schedule. Kevin Valentine, Divisional Director for Raymond Brown Construction said: “It has been a pleasure to work with New Forest District Council on this project. Our team has worked diligently to deliver the scheme in time for the summer season and fully in line with expectations. I know we are all proud of the end result and hope the community and visitors alike will enjoy the new facilities”.

The result is a subtle transformed and highly distinctive new waterfront for both the beach hut owners, residents and visitors at Milford-on-Sea. The project is also an exercise in how sea defences can be effectively inhabited. The integration of sea wall, beach huts and promenade into a single integrated entity has resulted in significant added value and is a case study of how our coastlines could be transformed in an age of climate change.

Paul Bulkeley, Snug's Design Director sums it up: "This is a great example of what can happen when you have an open minded client and dynamic collaboration between architect and engineer. This is how we will best solve societies emerging challenges. Together we were able to transform what was a disaster for the hut owners into an opportunity for all."
